Executive Summary

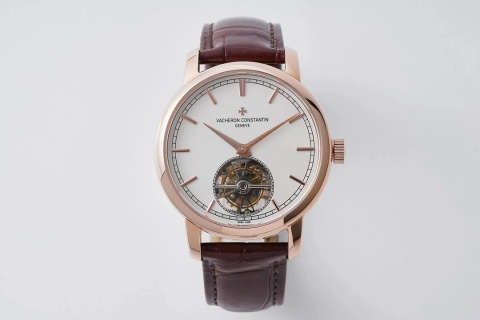

The Vacheron Constantin Traditionnelle Tourbillon Ref. 6000V occupies a singular position in high-complication replication — a flying tourbillon paired with a peripheral rotor inside an ultra-thin dress case. The dominant factories, BBR and 8F, have each adopted distinct strategies to replicate the Calibre 2160, with BBR prioritizing movement functionality and 8F leaning toward visual approximation. The core engineering gap remains dimensional: the genuine 10.4mm case profile against the clone’s 11.2mm–12mm thickness, a constraint imposed by the modified tourbillon module height that cascades into lug geometry, dial clearance, and wrist presence.
The Mechanics of the Flying Tourbillon in Guangzhou Replications
From Manual to Automatic: The Module Evolution
The earliest 1:1 Super Clone iterations of the Ref. 6000V relied on modified Seagull ST8000 manual-wind movements — affordable, available, but fundamentally incompatible with the peripheral winding architecture of the genuine Calibre 2160. The engineering constraint here is that a traditional central rotor would obliterate the visual depth required by a flying tourbillon display. Current automatic modules solve this by mounting a weighted peripheral ring beneath the movement plate, allowing the tourbillon cage to occupy the full vertical clearance above the mainplate. This approach maintains the 21,600 vph beat rate of the original while delivering approximately 65 hours of power reserve in the clone configuration. The trade-off is internal arbour friction: without the hand-lapped pivot surfaces of a Geneva-certified movement, the clone’s gear train generates measurably higher resistance across its winding mechanism.
Expert Authentication Insight
Listen for the winding cadence when manually setting the crown. A genuine Calibre 2160 produces a smooth, near-silent click sequence, while the clone’s click spring tension is inconsistent — the intervals between clicks vary audibly in pitch and rhythm.
The Cantilevered Cage and Its Structural Limits
What gives the 6000V its visual drama is the absence of a top bridge over the tourbillon carriage — the cage appears to float. From an assembly standpoint, the clone achieves this by anchoring the carriage to a single lower pivot point machined into the mainplate, with the cage arms cantilevered outward into the dial aperture. The clearance between the cage arms and the aperture edge is held to less than 0.2mm, a tolerance that prevents visible gaps while allowing free rotation. Retrograde tension springs integrated into the cage base counteract the lateral oscillation that plagues lower-tier tourbillons, ensuring the Maltese Cross motif remains centered throughout the full 60-second rotation cycle. The mechanical implication is that any deviation in pivot alignment compounds over time — a cage that runs true in month one may develop visible wobble by month six as the single-point mounting wears unevenly.
Expert Authentication Insight
To verify the mechanical precision and structural integrity of the tourbillon, hold the watch at a 90-degree angle with the crown pointing downward and observe the tourbillon cage for five full rotations. According to the Vacheron Constantin super clone technical comparison, a genuine 6000V will exhibit zero lateral play regardless of orientation. In contrast, a clone movement will often reveal a faint tilt or drift toward the lower edge of the aperture when subjected to this gravity load, indicating less precise tolerances in the cage assembly.
Beat Rate Calibration and the Regulation Challenge
Matching the genuine 21,600 vph frequency was a deliberate choice by both BBR and 8F — earlier Replica modules running at 28,800 vph produced a visibly faster tourbillon rotation that immediately betrayed their origin. The downshift to the lower beat rate reduces the amplitude requirements across the gear train, which in turn allows the mainspring to distribute torque more evenly over the power reserve window. The tolerance issue compounds when we examine beat error: the Poinçon de Genève standard demands 0.1ms or less, while clone modules routinely measure between 0.3ms and 0.8ms on a timegrapher. This deviation traces back to the hairspring regulation — the delicate terminal curve of the tourbillon spring is set by hand in Guangzhou workshops without the laser-measurement feedback loop used at Vacheron’s Plan-les-Ouates manufacture.
Expert Authentication Insight
Place the watch on a timegrapher in the dial-up position and compare the amplitude reading against the crown-down position. A genuine Calibre 2160 maintains amplitude within a 5-degree window across positions; the clone typically shows a 15–25 degree drop, indicating inconsistent mainspring torque delivery.
BBR vs. 8F: Dissecting the Dominant Tourbillon Factories
Dial Color Science and the Opaline Problem
The “Vacheron Blue” of the genuine 6000V is produced through a galvanized opaline process that deposits a microscopically textured metallic layer before the color treatment. BBR approaches this with a PVD coating process that builds the color in a vacuum chamber, yielding a stable hue that reads consistently under tungsten, fluorescent, and natural light. 8F takes a lacquer-based route, applying pigmented layers over a silver base dial — a method that produces a convincing result indoors but shifts toward a purple tint under direct UV exposure. The sunray brushing on the BBR version radiates precisely from the center of the tourbillon aperture at 6 o’clock, matching the genuine’s focal geometry. What this means in practice is that the BBR dial scatters light in a diffuse, outward pattern from the tourbillon, while the 8F dial’s brushing origin point sits approximately 0.5mm north of center, creating a subtle asymmetry visible under raking light.
Expert Authentication Insight
Photograph the dial under a single-point LED source placed at the 2 o’clock position. On the genuine and the BBR version, the sunray pattern will radiate symmetrically from the tourbillon window. The 8F version will show a off-center light bloom that shifts the brightest point away from 6 o’clock.
Case Profile Engineering and the Thickness Penalty
The most revealing diagnostic of a Ref. 6000V clone is its side profile. The genuine case measures 10.4mm from caseback to bezel top — a dimension that the modified tourbillon module cannot currently match. BBR achieves 11.2mm, while 8F lands closer to 12mm, and this 0.8mm–1.6mm surplus is not distributed evenly. The case is constructed from 316L stainless steel (though select BBR batches advertise 904L for corrosion resistance), and the extra height concentrates in the mid-case band between the bezel and the caseback. The lug-to-wrist transition angle steepens by approximately 3 degrees on the clones to compensate, pulling the lugs downward more aggressively than the gentle drape of the genuine Traditionnelle. This deviation is most apparent when the watch rests on a flat surface — a genuine 6000V sits with minimal visible air gap between caseback and surface, while the clone lifts perceptibly at the lug tips.
Expert Authentication Insight
To assess the case profile and movement integration accuracy, place the watch on a flat glass surface and view it at eye level from the 3 o’clock side. According to the Vacheron Constantin Patrimony vs. Traditionnelle comparative replication guide, you should measure the vertical distance between the glass and the lowest point of the bezel using a digital caliper. A genuine model will consistently measure 10.4mm ± 0.1mm; any reading above 11mm confirms the presence of a modified module architecture, a common characteristic of high-end clones trying to accommodate thicker movements.
The Peripheral Rotor: Function vs. Decoration
The Calibre 2160’s peripheral rotor is a technical statement — a 22k gold mass orbiting the movement’s edge on a ceramic bearing track, winding the mainspring without obscuring the decorated bridges. BBR replicates this with a functional peripheral ring weighted with tungsten inserts to generate adequate winding torque. The ball-bearing track, however, uses steel bearings rather than the genuine’s ceramic system, producing a distinct acoustic signature — an audible whirring during wrist movement that the genuine suppresses entirely. 8F takes a different approach in certain production batches: the peripheral ring is present and rotates, but it is mechanically decoupled from the winding mechanism, functioning as a purely decorative element. The power reserve in these 8F variants depends entirely on the manual winding stem, a shortcut visible through the sapphire caseback where the perlage pattern on the winding track shows no wear marks from rotor engagement.
Expert Authentication Insight
Wind the watch fully via the crown, then wear it for 8 hours of normal activity. Check the power reserve indicator or run it on a timegrapher. If the amplitude has not increased from the fully-wound baseline, the peripheral rotor is decorative — it is not contributing to the power reserve.
The Maltese Cross Cage: Geometry and Finishing Discipline
Surface Finishing: Black Polish vs. Machine Bevel
The Maltese Cross cage of the genuine Ref. 6000V exhibits a “black polish” — a mirror finish so deep that the steel appears black at certain angles, achieved through successive passes of diamond-paste abrasive on a tin lap. High-tier Replica factories attempt this finish manually, applying 0.25-micron diamond compound to the flat surfaces of the cross arms. The anglage on the interior angles — where the cross arms meet the central hub — is first roughed by CNC machining, then hand-touched with a chamfering file to remove the tool marks left by the cutter path. The sharpness of this chamfering is where the gap between clone and genuine becomes measurable: under macro photography at 20x, the genuine’s chamfer edge refracts a single, unbroken line of light, while the clone’s edge produces a diffused or doubled reflection indicating microscopic surface irregularity. The mechanical implication is not merely aesthetic — rough chamfer edges on cage components can shed micro-particles of steel dust into the escapement over years of rotation, degrading the impulse consistency.
Expert Authentication Insight
To evaluate the finishing of the Maltese Cross, angle a focused penlight across its top surface while viewing it through a loupe. As detailed in the VC Patrimony & Traditionnelle dress watch replica guide, the flat surface of a genuine cage will achieve a “black mirror” effect, going completely dark at a specific tilt angle. In contrast, a clone cage will retain a grey haze at all angles, indicating that the polishing depth has not reached the sub-micron level required for true black polish.
Axis Alignment and Concentricity Tolerance
Visual integrity of the 6000V depends on the tourbillon cage sitting perfectly concentric within the 6 o’clock aperture — any offset destroys the symmetry that defines the Traditionnelle’s dial architecture. The genuine movement is seated into the case using a three-point dial feet registration system that locks the movement’s orientation relative to the dial cutout with near-zero rotational tolerance. In the Guangzhou assembly process, this registration is less precise: the dial feet holes are drilled with a positional tolerance of approximately ±0.1mm, which means the cage can sit slightly off-center relative to the aperture. The clearance between the outermost cage arm tip and the aperture edge should be uniform at all four cardinal points during the rotation. When this clearance is uneven, amplitude consistency suffers — the cage encounters variable air resistance as it approaches the tighter gap, introducing a micro-drag that compounds the beat error measured on the timegrapher.
Expert Authentication Insight
Use a calibrated reticle loupe to measure the gap between the cage arm tip and the aperture edge at 12, 3, 6, and 9 o’clock positions during a full rotation. On the genuine, the variance will be less than 0.05mm. On clones, expect 0.1mm–0.15mm of variance, visible as an uneven “breathing” gap as the cage turns.
Screw Quality: Heat-Bluing vs. Chemical Treatment
The screws securing the tourbillon carriage and the bridge plates serve as a reliable diagnostic of finishing tier. The genuine Ref. 6000V uses screws blued through controlled thermal oxidation — heated gradually to approximately 290°C to produce a deep, consistent cobalt-blue oxide layer with inherent hardness. Super Clone versions universally substitute chemically blued screws, where the color is deposited through an immersion solution at room temperature. The visual difference emerges under magnification: heat-blued screws exhibit a color that shifts smoothly from deep blue to violet depending on viewing angle, while chemical bluing produces a flat, monochromatic blue that appears identical from every direction. The screw slots themselves reveal assembly discipline — genuine slots are cut with a precision broach and remain pristine after installation, whereas clone screw slots frequently show micro-deformation where the screwdriver blade slipped during the torque application, leaving a small burr at the slot edge.
Expert Authentication Insight
Rotate the watch slowly under a single overhead light source and observe the tourbillon bridge screws. If the blue color remains absolutely uniform regardless of angle, the screws are chemically treated. Heat-blued screws will display a visible color shift — blue to violet to deep indigo — as the light incidence changes across a 30-degree arc.
Movement Architecture: The Calibre 2160 Clone Strategy
Côtes de Genève Density and Optical Depth
The decorative finishing on the movement plates is where cost constraints become most legible. The genuine Calibre 2160 applies Côtes de Genève with a stripe spacing of approximately 0.5mm, achieved through a slow, controlled pass of an abrasive-loaded rotating wire across the bridge surface. Clone movements widen this spacing to 0.7mm–0.9mm to increase production throughput — each pass takes less time, and fewer passes are needed to cover the same surface area. The optical consequence is a flatter, less three-dimensional striping pattern that catches less light at oblique angles. On the baseplate, the perlage pattern tells a parallel story: the genuine uses individual abrasive pegs pressed sequentially to create overlapping circles with visible depth variation at each overlap zone, while clone factories use automated multi-peg stamps that produce uniform, shallow impressions. This is a direct result of the volume economics — a hand-applied perlage finish on a single bridge can take 20–30 minutes, while a stamped version completes in under 60 seconds.
Expert Authentication Insight
View the movement bridges through the caseback at a steep oblique angle — nearly edge-on. Genuine Côtes de Genève will produce sharp, alternating bands of light and shadow with crisp transitions. Clone stripes will appear washed out at the same angle, with soft, gradual transitions between light and dark bands, indicating insufficient depth in the abrasive cut.
Engraving Fidelity and Gold Inlay Color
The “Vacheron Constantin” branding and “750” hallmark engravings on the movement bridges are executed via traditional burin engraving on the genuine, producing deep V-channels filled with 18k gold wire that is burnished flush with the bridge surface. BBR replicates this with laser engraving followed by a gold-fill paste process — the laser cuts a shallower channel (approximately 0.08mm depth versus the genuine’s 0.15mm), and the fill material is a gold-tone alloy rather than solid 18k. The color difference is subtle but consistent: the genuine gold inlay reads as a warm, muted rose-gold under neutral light, while the clone fill tends toward a brighter, more yellow-brass tone. 8F uses a similar laser-and-fill method but with less consistent channel depth control, producing lettering that occasionally appears thinner on one side of a character where the laser power fluctuated during the pass. The crispness of the BBR lettering is measurably superior — character edges remain sharp and parallel under 10x magnification, while 8F characters show a 0.02mm–0.05mm edge bloom from laser heat distortion.
Expert Authentication Insight
Examine the “750” hallmark engraving under magnification. On the genuine, press gently on the gold fill with a wooden toothpick — it will feel completely flush and immovable. On clones, the fill may show a slight depression or ridge at the channel edges where the paste did not fully level during curing.
Jewel Authenticity: Functional Rubies vs. Decorative Placements
The Calibre 2160 specifies 27 jewels at critical pivot points throughout the gear train, each synthetic ruby seated into a polished sink-hole with a precision press fit. In the 1:1 Super Clone architecture, a portion of these are genuine functional jewels — typically the 12–15 positioned in the tourbillon carriage, escapement lever, and mainspring barrel arbor where friction reduction is mechanically necessary. The remaining positions, particularly along the peripheral rotor track and the decorative bridge surfaces, use adhesive-mounted glass or synthetic corundum stones that serve no functional purpose. The color discrepancy is a reliable indicator: functional jewels in the clone use mid-grade synthetic ruby with a pinkish-red hue, noticeably lighter than the deep pigeon-blood red of Vacheron’s specified stones. The sink-holes themselves differ in execution — genuine jewel settings feature a polished countersink with a mirror-finish chamfer, while clone settings are machine-cut and left unpolished, with visible tool marks around the jewel perimeter.
Expert Authentication Insight
Examine the jewels along the peripheral rotor track through the caseback, and when you apply gentle pressure to the caseback glass directly above a jewel with a soft probe, functional press-fit jewels will show zero movement, whereas adhesive-mounted decorative stones may shift microscopically or show a faint glue halo around their circumference that genuine press-fit settings never exhibit—this diagnostic distinction is detailed in the Traditionnelle 82172 replica entry-point inspection and jewel seating criteria, making microscopic displacement under probe load a clear marker of non-authentic assembly rather than rotor track performance.
